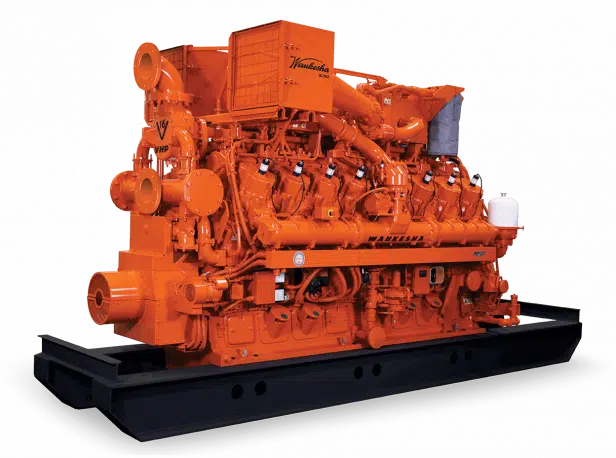

Waukesha VHP Series 4

Waukesha VHP engines are designed for reliable operation in gas compression, power generation and as a mechanical drive. Waukesha VHP generators can provide reliable power for continuous power supply and can be used to cover peak loads.
  • Power at 1200 rpm626-1253 kW
Get an offer

Technical specifications

VHP Series Four F3524GSI L7044GSI
Hp output at 1200 rpm 560-840 418-626
Output kW at 1200 rpm 1120 – 1680 835 – 1253
BSFC (LHV) (Btu/hp (kJ/kWh) at 1200 rpm) 8035 (11366) 7881 (11149)
Fuel consumption Btu/l.s/h x 1000 (kW) at 1200 rpm 6749 (1976) 13240 (3881)
Number of cylinders 6 12
Cylinder capacity, l 58 115
Compression ratio 8:1 8:1
Cylinder diameter and stroke 9.375’’ x 8.5’’ (238 x 216) 9.375’’ x 8.5’’ (238 x 216)
Water jacket volume of the cooling system, l 184 379
Oil capacity, l 273 719
Start-up system 125 – 150 psi air/gas
24V electric
125 – 150 psi air/gas
24V electric
Dimensions L x W x H, mm 3280 x 2175 x 2066 3734 x 2159 x 2485
Weight, kg 7 257 11 000

HIGH PERFORMANCE

Series 4 VHP engines are available in 6- and 12-cylinder configurations with enriched and leaner combustion systems. A wide range of low-load operations is possible (700-1,200 rpm).

BROAD APPLICABILITY

VHP series 4 engines produce electricity at high altitudes and remote locations. They are capable of running on hot fuel.

RELIABILITY

VHP series 4 engines are designed for reliability, durability and robustness. They have been used in natural gas production for more than 40 years.

Areas of application:

  • Waste water gas
  • Injection
  • Cogeneration
  • Mobile and emergency power supply
  • Oil and gas
  • Pumping of oil and gas
  • Inline processing
  • Gas gathering / wellhead
  • Landfill and wastewater treatment plants
  • Landfill gas
  • Storage
  • Energy supply for oil fields
