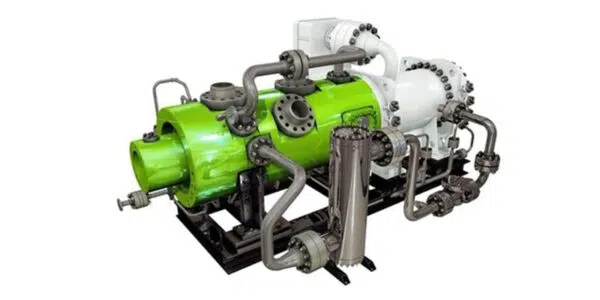

Integrated ICL compressors

The field-proven ICL integrated zero-leakage compressor combines innovation, technology, reliability and ease of use. The main features are high efficiency, compactness and low noise level.
  • Discharge pressure< 350 bar
Get an offer

Technical specifications

ICL zero-emissions integrated compressors Unit of measurement ICL
Discharge pressure bar < 350
Inlet flow rate range (design point) m3/h 500 – 35 000
Maximum speed >1 MW rpm 15 500 > 1MW
Maximum speed <1 MW rpm 30 000 > 1MW
Minimum speed % 35
Configuration 1 Single-stage cantilever
Configuration 2 Multistage between bearings

MEETS THE STRICTEST ENVIRONMENTAL STANDARDS

The ICL compressor is a centrifugal compressor driven by a high-speed motor in a common sealed housing with a motor. This configuration eliminates leakage and on average prevents methane emissions of up to 40,000 m3 per year. The gearless drive and the use of magnetic bearings eliminate the need for lubrication (savings of up to 5000 litres of oil in 5 years of operation). The variable frequency drive (VFD) allows speed control at maximum efficiency over the entire operating range, which reduces energy consumption.

A SCALABLE SOLUTION ADAPTED TO MOST PROCESSES

ICL integrated compressors with medium voltage asynchronous motor can operate from 1 to 15 MW. "Full size" ICL is a very compact configuration that is 60% smaller than typical electric motor compressor variants. The "mini" ICL variant is a solution for loads under 1 MW using low voltage permanent magnet motors. It is a smart low-pressure solution for flare gas gathering, gas production and micro LNG.

OPERATIONAL FLEXIBILITY AND MINIMUM MAINTENANCE

Through the use of a variable speed drive, the ICL integrated compressors guarantee smooth operation over a wide load range with a rated speed of 35% to 105%. This allows the compression ratio and flow rate to be adjusted. The compressor can reach full capacity from standstill in less than 3 minutes. ICL compressors are an ideal solution for cost optimisation. Their simple design reduces installation time and the absence of friction and wear parts enables up to 10 years of maintenance-free operation with clean gas.

Areas of application:

  • Gas pipelines
  • Underground gas storage facilities
  • Gas collection
  • Gas gathering and gas booster extraction
  • Micro-LNG
